gas,oil,dual fuel steam boiler

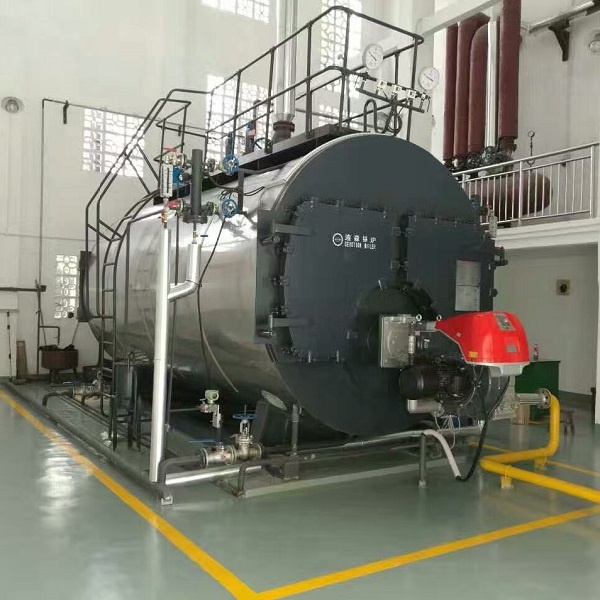

Description: horizontal, 3-pass, wet-back, fire tube steam boiler
Product model: WNS0.5~WNS20
Rated steam output: 0.5 ton/hr ~20 ton/hr
Rated pressure: 0.7Mpa ~ 1.6 Mpa (7 bar ~16 bar or 100 psi ~ 232 psi)
Efficiency (at condition without economizer): 90 ~ 91.3%
Fuel: optional of light oil, heavy oil, natural gas, LPG, etc
Burner: fully automatic, European brand
Control panel: Siemens PLC plus touch screen
Water feed pump: two, one on duty, one standby
Economizer: optional
Manufacturing code: Chinese, ASME optional
Insulation:100 tickness aluminum silicate wool insulation
